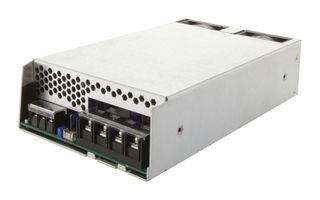

SHP1000PS48

SHP1000PS48 is a SHP series AC-DC power supply provides up to 1200W of output power, it is forced air cooled via integral multi voltage level fan which is load dependent. 5VDC/1A standby supply which can be utilized with the signals and control features of the unit to provide detection of loss of AC input and remote on/off control. Multiple units can used in parallel via the current share facility, providing higher power solutions. Low earth leakage current, and conducted EMC compliance to Class B also simplify higher power system design. It includes overvoltage, overload, overtemperature, short circuit protection. Certified by IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, SEMI F47.

• Typical input voltage is 24V, output voltage 1 is 12V, output current 1 is 60mA (nominal)
• Typical efficiency is 85%
• Rugged industrial construction, variable fan speed for noise reduction
• AC OK, remote on/off and active current share, switching frequency is 70KHz (PFC)
• 5V standby, screw terminals
• Isolation is 3000VAC (input to output)
• 3 year warranty
• Operating temperature range from -20 to +70°C
